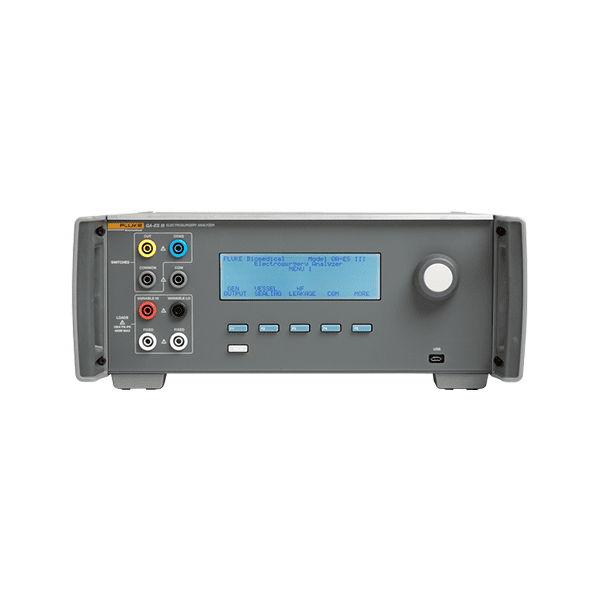

QA-ES III Electrosurgical Tester and Analyzer

Key Features

  • Test all critical ESU functions with precise power, current, frequency, crest factor and load resistance ranges
  • Collect measurements in single and continuous mode
  • Connect wirelessly via Bluetooth for easy record retrieval without interference or limitation by cables and wires*
  • Comply to all global standards, including ANSI/ AAMI and IEC**
  • All-in-one tool: all hardware and software necessary to complete preventive maintenance and troubleshooting is built in to the unit, eliminating the need to purchase or transport additional cables, leads, switch boxes and RECM box
  • User-friendly interface: large buttons and LCD screen guide the user through test sequences
  • Memory storage of up to 5,000 test records, eliminating the need to download data after the completion of each preventive maintenance or troubleshooting session
    *Wireless capabilities not available in all countries. Ask your sales representative for more details. **Bipolar leakage testing performed with 200 ohm fixed load.



  • Test all critical ESU functions with precise power, current, frequency, crest factor and load resistance ranges while ensuring ESU safety.
  • Ensure the performance and safety of electrosurgical units with simplified testing using the QA ES III electrosurgical analyser. The QA-ES III is capable of testing all modern high power electrosurgical units with generator output current accuracy as low as ± 2.5 %.
  • Collect all measurements including vessel sealing, contact quality monitor (CQM), high frequency (HF) leakage and output power distribution in single or continuous mode.
  • You don’t need to carry additional accessories or cables as the QA-ES III has all hardware and software needed for complete testing.
  • With all-in-one features, including wireless functionality*, the QA-ES III is one of the most user-friendly electrosurgical analysers on the market today.
  • Additionally, optional Ansur test automation software allows users to create and automatically run tests, capture data, and produce easy-to-read reports. *Wireless capabilities not available in all countries. Ask your sales representative for more details.
    10 Best Practices for Electrosurgical Unit Testing
  • Continuous operation: Continuous measurement of power, current, peak-to-peak voltage (closed load only), and crest factor
  • Single operation: Single measurement after the set delay time of the ESU output of power, current, peak-to-peak voltage (closed load only), and crest factor
  • Power distribution: Tests impedance-sensing circuitry in power guarantee functions in new-generation ESU.
  • Applicable parameters – power, current, peak-to-peak voltage (closed load only) and crest factor – can easily be observed during the measurements
  • RF leakage current: Provides connections and load configurations to measure HF leakage from both grounded and isolated equipment
  • RECQM: Test the return electrode control quality monitoring using the QA-ES internal loads
Enquiry Now

Description

QA-ES III Electrosurgical Tester and Analyser

  • Easily test and wirelessly* download all critical functions using the QA-ES III ESU analyser.
  • Quickly collect all measurements, including vessel sealing, contact quality monitor (CQM), high frequency (HF) leakage, and output power distribution (single or continuous mode) with the user-friendly interface guide.

Download brochure

QA-ES III Electrosurgical Analyzer
