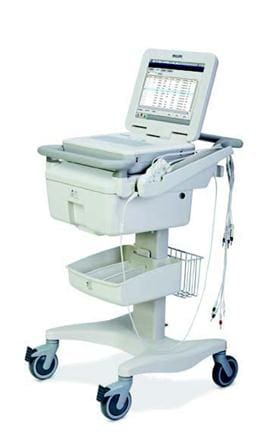

PageWriter TC70 cardiograph

Features

  • Visual guidance to simplify ECGs

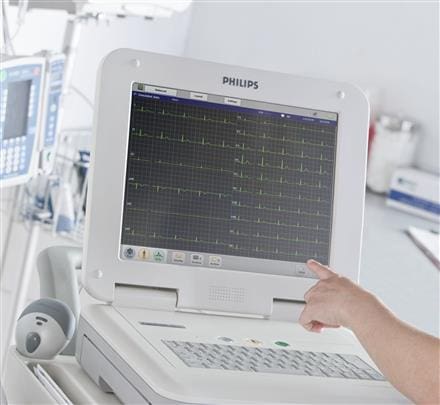

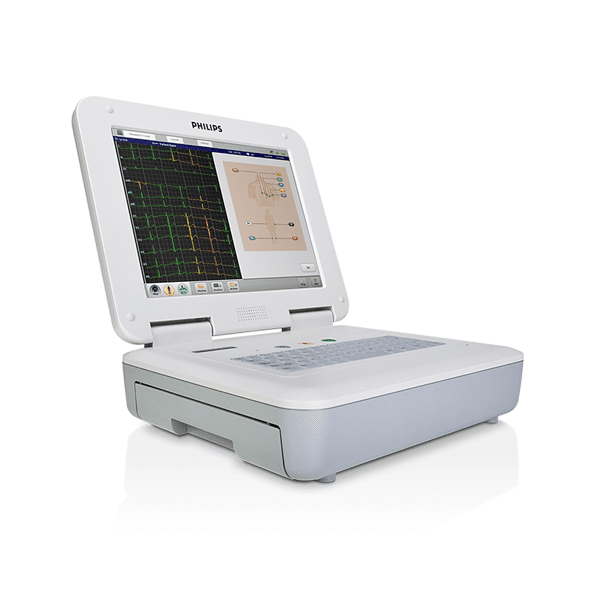

    With the PageWriter TC70 cardiograph, each button lights in sequence, prompting you to take an ECG as easily as 1-2-3. The high-resolution, 15″ touchscreen further streamlines ECGs.
  • Philips DXL ECG Algorithm expands diagnostic capabilities
    Philips DXL 16-Lead ECG Algorithm provides industry-leading ECG interpretations and a suite of advanced STEMI diagnostic aids to provide an interpretation of rhythm and morphology for a wide variety of patient populations. It includes: Critical Values, ST Maps, and culprit artery identification.
  • Automated reporting sequence saves time
    The high performance PageWriter TC70 cardiograph features an automated ECG report sequence with integrated wireless transfer of ECGs to streamline your workflow.
  • Lead placement aids accurate placement of leads on the patient
    The anatomic patient interface module and LeadCheck help support correct lead placement, while the 3-in-1 Trident lead wires reduce tangling.
  • Critical Value statements speed the delivery of urgent care
    When appropriate, the PageWriter TC70 automatically displays Critical Value summary statements boldly on screen and on printed ECG reports so that caregivers can determine the need for urgent care. Clinicians can quickly take action and reduce the time from the discovery of a critical cardiac event to intervention, such as balloon angioplasty.
  • Saved ECGS can be quickly accessed
    Clinicians can save time by retrieving previous ECGs at the bedside for quick comparisons.
  • Advanced bidirectional network communication for secure connection
    With industry standardized DICOM, XML, and PDF report formats, via wireless LAN, or modem and fax, PageWriter TC70 fits seamlessly into your existing IT infrastructure. So you’re always connected, without being locked in. It delivers secure, wireless connectivity via standard LAN protocols to protect the privacy of patient, staff, and financial information.

Specifications

  • ECG Functions
    Simultaneous Lead Acquisition
    Up to 18 leads
  • Full Disclosure
    Twenty minute history of all 16 leads and complete ECG report of any 10 seconds
  • Timed ECG
    Support for pharma stress protocols
  • Report Storage/Transfer
    Full fidelity at 500 Hz of all 10 sec for up to 16 leads in XML format (schema published)
  • Environmental – HeartStart FRx
    Operating Conditions (b)
    15% to 80% relative humidity %
  • Operating Conditions (a)
    10°C to 40°C (50°F to 104°F)
  • Operating Conditions (c)
    Up to 4,550 m (15000 ft)
  • Electrical – IntelliBridge EC40/80
  • Battery capacity
    Typically 50 ECGs on a single charge
  • Battery recharge
    5 hours to full capacity
  • Power consumption
    75 W max W
  • AC power
    100-240 VAC at 50/60 Hz
  • Philips DXL 18-Lead ECG Algorithm
    Interpretive statements
    <gt/>600 interpretive statements with integrated pediatric analysis
  • LeadCheck
    Lead placement software detects 20 different lead reversals
  • Borderline Statement Suppression
    Three configurable settings
  • Reasons
    Selectable explanations of all interpretive statements
    Nomenclature
    Conforms to 2007 AHA/ACC recommendations
    STEMI Diagnostic Aids
  • Graphical ST Vector
    Two polar ST Maps in frontal and transverse planes
  • Critical Values
    Highlights 4 conditions requiring immediate clinical attention
  • User Interface
    Touchscreen
    1-2-3 operation/context sensitive application/5-wire resistive touchscreen
  • Keyboard
    65 button standard full alphanumeric keyboard that supports special characters
  • Display
    15 inch TFT
  • Networked Features (requires IntelliSpace ECG)
    Central Time Management
    Time can be synchronized to a networked time master
  • Orders
  • Configurable rules to retrieve cardiograph-specific worklists
  • Signal Quality Indicators
  • Leads Off Advisory
    Anatomical lead map displays the location and label of any loose or disconnected leads/electrodes
  • Lead Color
    Four colors to indicate levels of waveform quality
  • LeadCheck
    Lead placement software detects 20 different lead reversals
  • Heart Rate
    Continuous display of patient heart rate
  • Print Preview
    Full screen preview of complete 16 lead report prior to printing
  • Training
    Application Help
    Integrated graphical HELP screens for primary functions
  • Self Paced
    Computerized, interactive, dynamic animation covering all major clinical functionalities
  • Signal Processing
  • Patient Interface Module
    Remote microprocessor-controlled digital module provides 5μV resolution
  • Pre-Processing Filters
  • AC Noise
    50 to 60 Hz
  • Signal Processing
    Artifact Rejection and Baseline Wander
    Presentation Filters – 10 sec Reports
  • Low Pass
    40/100/150 Hz
  • High Pass
    0.05/0.15/0.5 Hz
  • Presentation Filters – Rhythm
    High Pass
    0/05/0.15 Hz
  • Presentation Filters – Rhythm
    Low Pass
    40/100/150 Hz
    Mechanical
  • Dimensions
    40 x 33 x 16 cm (15.7 x 13 x 63 in)
  • Weight
    13 kg/28 lb
  • Safety and Performance
    International Standards
    IEC 60601-1: 1988 +A1:1991 +A2:1995 General Requirement for Safety
    IEC 60601-1: 1988 +A1:1991 +A2:1995 General Requirement for Safety
    C 60601-2-51: 2003: Particular Requirements for Safety
    Ul 2601-1: 20031997 US General Requirements for Safety
    CAN/CSA-C22,2 No, 60l1-M90 51:1994 B:1996
    AAMI EC111991 (R: 2001): Diagnostic Electrocardiography Devices
